Permeability first, screen identity second.
33% openness keeps the panel bright enough for daylight while preserving a clear honeycomb read.

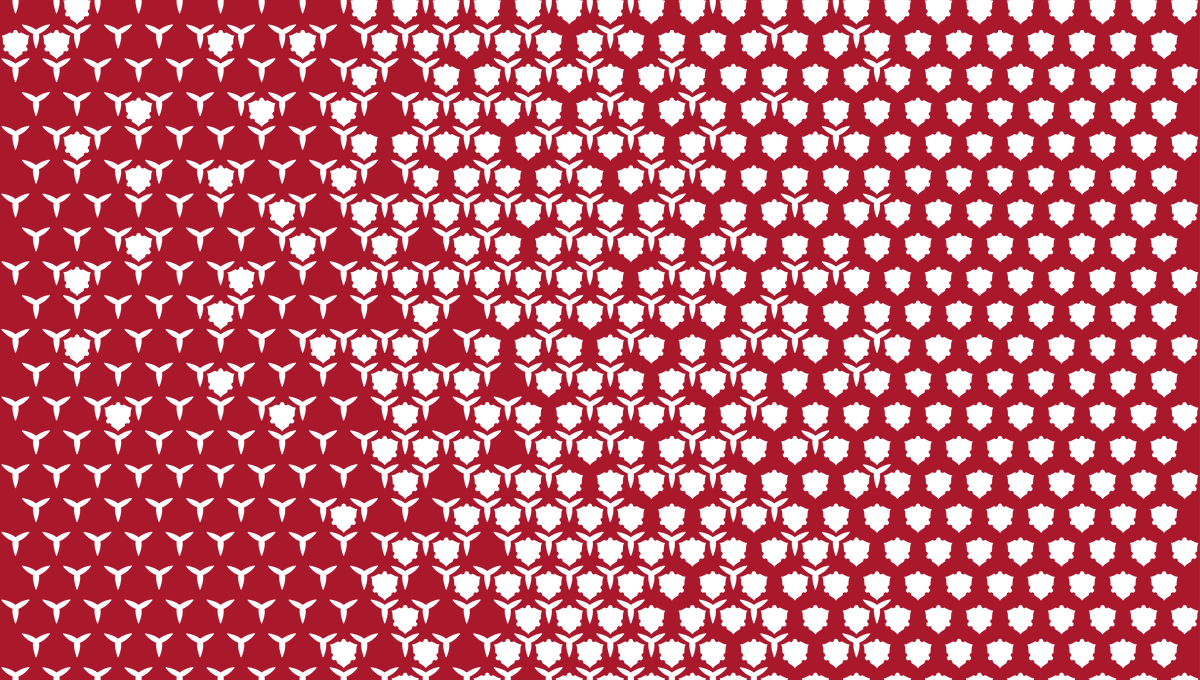

Apiary. Architectural Metal Screen Pattern
A honeycomb-inspired architectural metal screen pattern for shade, filtered light, and balanced privacy.
Openness
33%
Privacy
4/10
Shade
5/10
Fabrication
Custom sizes under 5x10
Key Spec
33% Openness
Pattern Intent & Spatial Impact
Filtered light and pattern shadow
Progressive honeycomb geometry drawn from natural pattern systems and adapted for architectural screening.
Visual Study

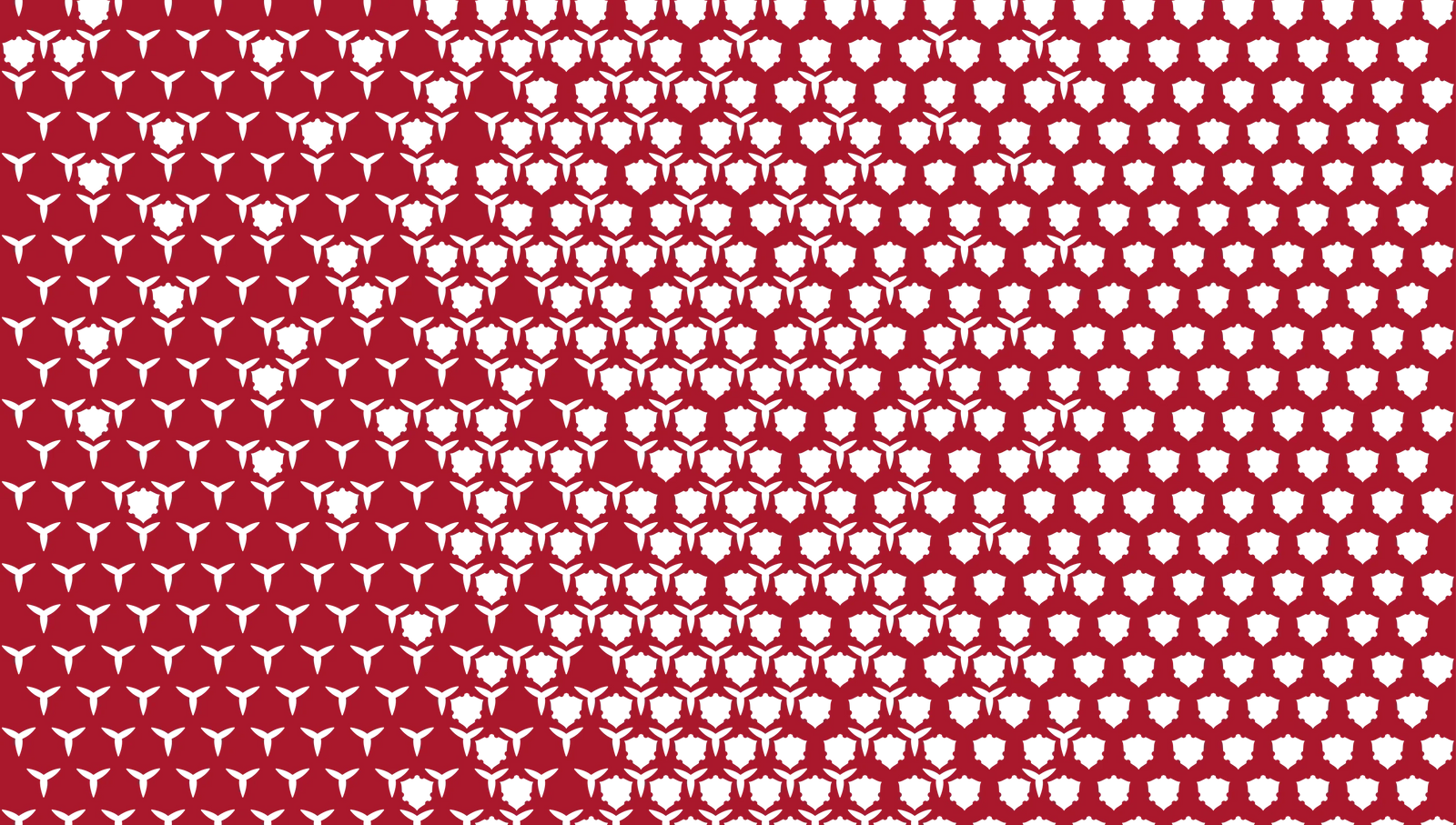

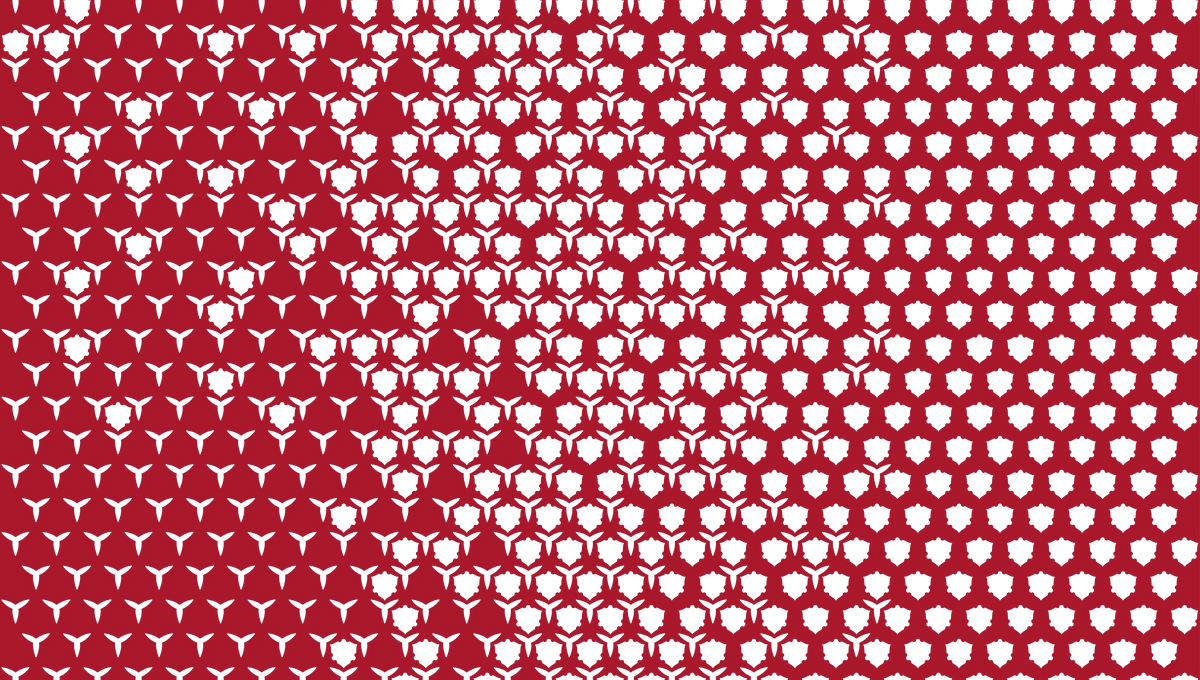

Pattern Detail Study
33% open field
A motif that reads from both close range and elevation.
Balanced density gives Apiary enough structure for facade use without flattening the pattern into a solid mask.
Light shifts without losing pattern clarity.
Moderate shade with active daylight still present.
Request Quote
Send panel size, privacy target, and finish intent to get a matched quote before CAD review.
System Details
Specification Overview
Application Focus
- Facades
- Lobbies
- Corridors
- Feature screens
Dimensions & Sizing
Common Panel Formats
4'×8'
3'×8'
4'×5'
3'×4'
Custom Format Limit
Max 5'×10'
Repeat behavior is continuous/repeating. Custom geometries are evaluated against structural tolerances.
System Modalities
- architectural metal panel systems
- custom fabricated screen panels
Engineering Notes
Code Compliance
Pattern Cut Sheet (.pdf) Pattern & Hardware CAD file (.dxf)

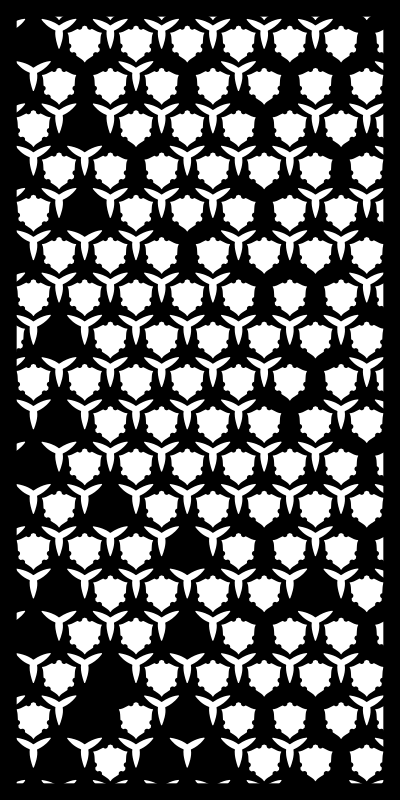

Finish Process
Finish previews are indicative; final finish selection follows project-specific review.
Visual Reading
Light & Shadow Behavior
Front-Lit
Pattern surface reads first.
The honeycomb geometry stays legible from straight-on views before the voids take over the composition.
Angled View
Open cells gain depth at movement lines.
Oblique sightlines strengthen the panel edge and make the screen feel more dimensional in corridors and feature runs.
Backlit Presence
Shadow rhythm without full blackout.
Partial screening, not full concealment.
Use Cases
Application Scene Gallery

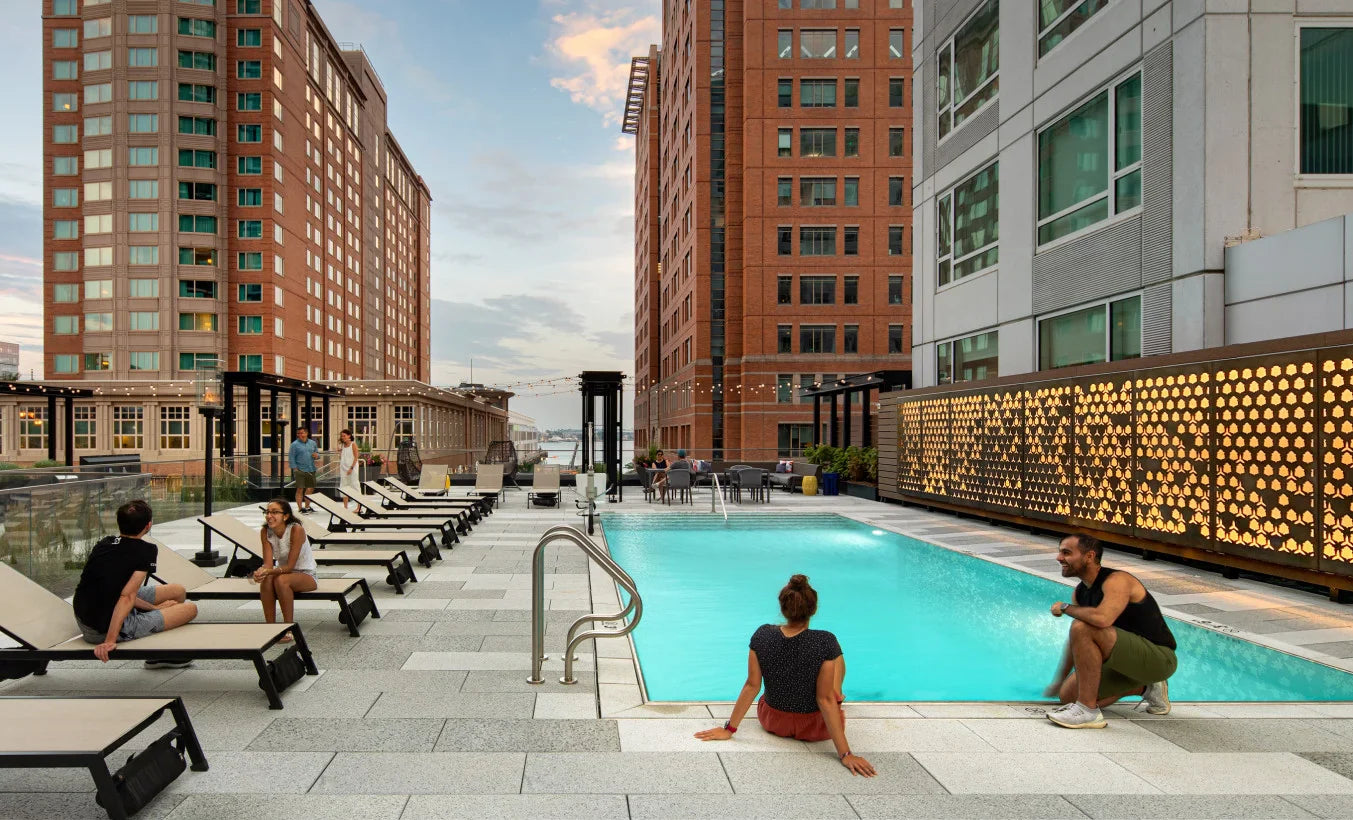

Facade Veil
33% open / 5/10 shade
Screen the elevation while daylight stays active.
Use Apiary where facade screening should soften solar load without turning the envelope into a dense mask.
Lobby Divider
4/10 privacy / organic read
Hold space separation without closing the arrival zone.
Apiary works where the divider needs geometry and atmosphere, but not the heaviness of a closed partition wall.
Corridor Screen
directional movement / filtered sightlines
Guide circulation with a lighter visual edge.
The repeated cell rhythm gives long runs more texture while keeping corridors bright and visually open.
Feature Screen
9/10 biomimicry
Let the pattern act as the visual moment.
Use Apiary when the screen itself should carry the aesthetic story, rather than disappear into a neutral backdrop.
Request Quote
Need the right pattern direction for facade, lobby, corridor, or feature-screen use? Send your application and we will quote the right fit.
Technical Data
Performance Metrics
Privacy
4/10
Shade
5/10
Biomimicry
9/10
Structure
7/10
Small Opening
6/10
Field Pattern
8/10
System Translation
Material & Finish Translation
System Modalities
architectural metal panel systems
custom fabricated screen panels
Fabrication Limit
Pattern Cut Sheet (.pdf) Pattern & Hardware CAD file (.dxf)
Finish Translation
Finish Process
Finish previews are indicative; final finish selection follows project-specific review.
Customization
common panel sizes, custom sizes under 5x10.
CAD Release
Open source reference PDF
CAD access is gated and provided on qualified request.
Next Views
Explore Adjacent Pattern Directions
Quote-ready next step
Pattern direction help
Need help narrowing the right pattern family?
Share privacy target, daylight intent, panel size, and finish direction. We will turn the shortlist into a quote-ready recommendation.
same family
More organic patterns
Stay inside flowing motifs and compare alternate openness, shade, and privacy balances.
more restrainedCompare geometric patterns
Move toward cleaner repeat systems when the project needs less biomimicry and tighter visual order.
denser fieldBrowse perforated patterns
Compare denser screen language when stronger concealment and a sharper metal read matter more.
Specification FAQ
How private is Apiary in practice?
Partial screening, not full concealment.
What panel sizes are typical for Apiary?
Pattern Cut Sheet (.pdf) Pattern & Hardware CAD file (.dxf)
Can Apiary be customized for project geometry?
common panel sizes, custom sizes under 5x10.
How is CAD released for this pattern?
CAD access is gated and provided on qualified request.
Apiary
