FAQ & Download Center

Send the application, approximate dimensions, quantity, preferred material, finish, and any drawings or reference images. We reply with method recommendation, production notes, lead time, and pricing.

Yes. Send a sketch, CAD file, DXF, AI file, photo, or reference image. We convert it into a manufacturable pattern and return a production drawing for approval.

Simple adaptations of existing patterns are usually handled inside the quote. Fully custom engineering is confirmed before we begin.

Yes. We provide full custom metal partition fabrication, from complex geometric patterns to unique ornamental designs, using high-precision CNC laser cutting. For the fastest review and production workflow, please send vector files in DXF, DWG, AI, EPS, or PDF format.

100% custom patterns are our specialty. Send your design — we'll cut it exactly.

The confirmation flow:

1. You send your concept — sketch, CAD, or reference photo

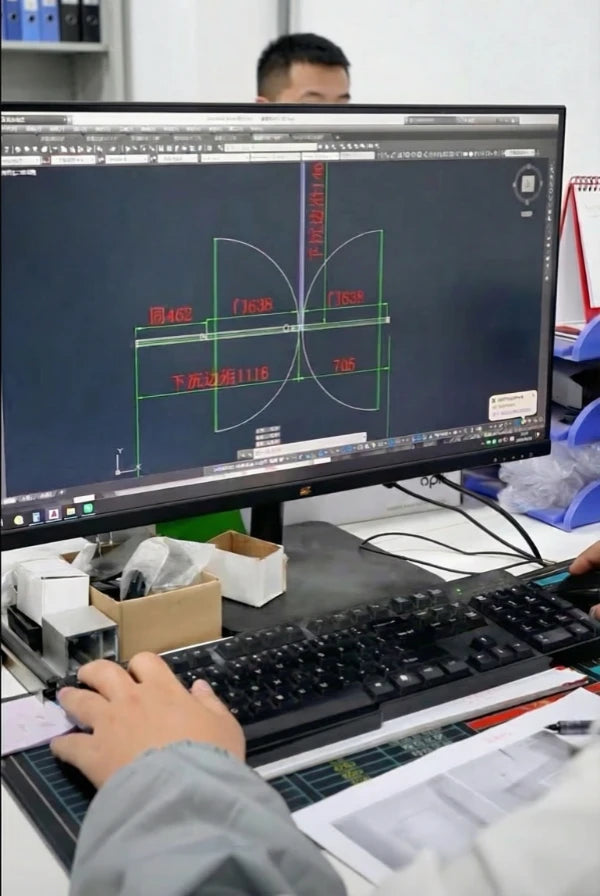

2. We return an engineering drawing with panel layout within 48 hours
3. You review — 2–3 revision rounds included, no charge
4. You sign off — written approval before any material is cut
5. CNC cutting begins at ±0.1mm tolerance

Your design stays yours. We execute — we don't modify without your approval.

Standard patterns usually start from 30 sqm. Custom patterns usually start from 50 sqm. Sample panels can be made before production so you can confirm material, finish, and pattern scale.

Custom stainless screen pricing is shaped by material grade, thickness, pattern density, finish, quantity, and hardware detail. A simple per-square-meter number can be misleading until these variables are known.

• Material grade - 316 costs more than 304 but may be the correct choice for coastal or poolside exposure.
• Thickness and frame - taller panels, large spans, and exterior use often need heavier sheet or reinforced framing.
• Pattern density - fine cuts, tight bridges, and high detail increase cutting time and finishing work.
• Finish - brushed stainless is usually simpler; PVD, antique, mirror, and custom color finishes add processing steps.
• Quantity - repeated panels reduce setup cost per unit; one-off feature walls carry more engineering time.

A budget quote should include the screen type, grade, thickness, finish, panel dimensions, mounting approach, and packing method. For procurement teams, this makes quote comparison clearer than a loose material-only estimate.

Send dimensions, quantity, finish target, and installation location to receive a project-specific price band.

Transparent, tier-based pricing linked to pattern complexity, material thickness, and surface finish.

What drives the price up or down:

• Pattern complexity — linear grid is most economical; intricate carving or fine lattice adds 30–60%
• Material thickness — 0.8–1.2mm is standard; 2–3mm adds 20–30%
• PVD finish — brushed/mirror is baseline; antique bronze or custom color matching adds $40–$80/sqm
• Quantity — unit cost drops significantly above 50 sqm

Send your project scope → we return a line-item quote within 24 hours.

Perforated metal panels typically range from 40–160 USD/m², depending on material, thickness, open area percentage, and surface finish.

Architectural-grade perforated panels vary widely by configuration. Aluminum is the most economical option, while stainless steel suits high-end durability requirements.

Key cost drivers:

• Material — Aluminum is cheapest; stainless steel is 2–3× the cost
• Open area — >50% reduces material yield but slightly increases processing cost
• Thickness — Each additional 1mm adds 15–25%
• Finish — Powder coat is most economical; PVD / anodized is premium
• Panel size & customization — Standard 1.2×2.4m is most cost-effective; oversized or shaped panels add 20–40%
• Volume — >500m² qualifies for 15–25% discount

Share your drawings and specs — we return a precise quote within 24 hours to balance budget and performance.

Standard MOQ is 50–100 sqm depending on the manufacturing method. Pricing scales with volume:

• Under 50 sqm: 30–50% premium for small-batch setup
• 100–500 sqm: Standard architectural pricing
• 500+ sqm: 15–25% volume discount on standard patterns

All prices FOB Foshan. Send dimensions for a detailed quote within 24 hours.

304 stainless steel works for most interior screens, partitions, wall panels, and protected exterior areas. 316 stainless steel is better for coastal, marine, poolside, and high-humidity environments.

Send the installation location and exposure level with your drawing. We will recommend the grade before quoting.

304 and 316 are the two main stainless grades for custom screens; the specification choice comes down to exposure, not appearance. 304 stainless is the practical baseline for controlled interiors and many inland projects. 316 stainless adds molybdenum, which improves resistance to chloride exposure from salt air, pool chemicals, and aggressive cleaning regimes.

• Use 304 when the screen is indoors or protected from chloride exposure.
• Use 316 when the screen sits near salt air, pools, spas, or exterior weather.

Send the project location, indoor/outdoor condition, and cleaning environment with the inquiry. The quote can then lock the grade, finish, and maintenance expectation before samples are made.

Common finishes include brushed hairline, mirror, bead blast, satin, vibration, etched surfaces, powder coat, and PVD colors.

Our most common materials are 304 and 316 stainless steel, with optional aluminum, brass, and copper depending on design goals. Finish options include hairline, mirror-polished, sandblasted, and PVD color coating (such as titanium gold, rose gold, and bronze), with optional anti-fingerprint protection.

Molecular-bonded PVD coating — not paint, not powder coat. Doesn't peel, chip, or fade indoors.

Why PVD outlasts paint:

• Bonding — molecular-level deposition, not a surface layer
• Lifespan — 10–15 years indoors with zero color shift
• AFP option — anti-fingerprint nano coating reduces smudges by 80% in high-touch areas

Custom color matching available. Send a Pantone reference — we'll produce a test chip.

We manufacture in three primary materials with a full range of surface finishes.

PVD coating provides the most durable color finish — 20+ color options from champagne to black titanium. Mill certificates included with every order.

The choice depends on your design complexity, structural requirements, and budget.

Send your drawing for a specific method recommendation — our engineers review each project against manufacturing feasibility within 24 hours.

The right stainless screen type depends on privacy, light transmission, structural span, and the visual role of the screen. A parent page should not force every buyer into one product format; the project condition should point to the right route.

Laser-cut sheets offer the most direct path for flat panels and repeat patterns. Glass-hybrid systems add a second material layer when partial enclosure, reflection, or light diffusion matters. Outdoor screens need grade, frame, drainage, and fixing details checked as one system.

Share the scene, size, and desired privacy level. The team can route the project to the right stainless screen format before quoting.

Three directions — each one answers a different design question.

Quick decision guide:

1. Space needs structure, not decoration? → Linear Grid. Clean lines, premium presence.
2. Space needs a signature piece? → Decorative. Intricate patterns guests remember.
3. Space needs cultural atmosphere? → New Chinese Lattice. Heritage warmth in durable steel.

Full support for custom patterns and logo perforation — from DXF / AI files, images, or sketches.

We use CNC programming or laser processes to replicate designs precisely while adhering to engineering standards.

Production workflow:

1. File intake — DXF / AI preferred; images / sketches require vectorization
2. Software generation — Perforation array / CNC program
3. Tool or laser verification
4. Batch punching / laser cutting
5. Surface finish and QC

Engineering limits and common misconceptions:

Geometric limits:

• All patterns must maintain structural integrity (open area typically ≤60%)
• Avoid sharp corners that create stress concentration
• Minimum bridge width ≥ sheet thickness
• Ultra-high-density micro-holes (<0.5mm) or highly irregular free-floating patterns are not supported

Submit your pattern files — we return a technical feasibility report and sample recommendation within 48 hours.

Open area is one of the most important numbers in a stainless screen specification because it controls privacy, daylight, shadow, and ventilation. It is the percentage of the panel surface removed by laser cutting, perforation, or spacing.

Lower open area usually improves privacy and stiffness, but it can make a screen feel heavier. Higher open area feels lighter and brighter, but bridge width, sheet thickness, and frame support need closer review.

Tell us the viewing distance and privacy target. The pattern can then be adjusted before cutting, rather than after the sample stage.

Engineered for commercial-scale installations — not limited to catalog sizes.

For openings larger than 4 meters:

• Split into matched modules that read as one continuous surface
• Joint lines engineered to be invisible at viewing distance
• Split logic optimized for transport safety and site access

Send your opening dimensions (W × H) → we'll propose the optimal panel count and split strategy.

Yes — we support full customization from CAD / image / sketch to finished perforated panel. Size, open area, and pattern are all adjustable to your spec.

The customization process is transparent and efficient, ensuring both engineering feasibility and visual quality.

Engineering limits:

• Hole diameter ≥ sheet thickness (recommend 1.2:1)
• Edge distance ≥ thickness × 1.5
• Maximum open area recommend ≤60% to maintain strength
• Minimum feature size depends on sheet thickness

Submit your design files — we return a feasibility assessment and optimization recommendations within 48 hours for zero-risk customization.

0.8mm to 3.0mm for decorative panels. Up to 6.0mm for structural applications like railings and gates. We match thickness to the panel size and application.

As a reference, a 1.0 mm SS304 partition panel is about 8 kg per square meter. Most interior metal partitions are non-load-bearing. For single panels above 3 square meters, we usually recommend or design additional reinforcement to maintain stiffness and flatness.

• Samples include 2–3 finish options shipped via air freight.
• Bulk orders include full QC documentation and material certifications.

Samples usually take 7–12 working days. Standard production usually takes 15–20 working days. Custom finishes, larger quantities, and complex fabrication can take longer.

Yes. We ship by sea freight or air freight depending on timeline and order size. Panels are protected with film, separated with EPE foam, labeled, and packed in reinforced plywood crates.

Multiple installation methods are available, but large-area or high wind-load projects should always be handled by a professional curtain wall contractor.

Proper installation ensures wind load safety, flatness, and long-term stability.

Key technical requirements:

• Wind load calculated per local code (ASCE 7 or GB 50009)
• Large panels (>1.5m span) require stiffeners to prevent vibration / deformation
• All fixings need corrosion-resistant gaskets
• Perforated panels are lightweight but high wind suction demands sufficient anchorage

We provide complete installation detail drawings and BOM lists. We recommend certified curtain wall teams to ensure first-pass project acceptance.

Export-grade multi-layer protection — shipped to 40+ countries with near-zero damage rate.

Logistics options:

• Sea freight (most economical for >50 sqm): FOB Foshan / CIF destination
• Air freight (samples or urgent): DDP door-to-door
• Each crate labeled by zone and install sequence
• Pre-shipment photos and video of packed goods
• 100% insurance coverage during transit

Not always. For spaces where floor penetration is restricted, such as heritage properties or leased offices, we can provide tension-mount or ceiling-mount systems for low-impact installation. Our engineering team confirms the right interface details during shop drawing development.

Every order includes:

• 8 QC checkpoints per panel — dimension, flatness, weld quality, surface finish, color consistency, edge condition, packaging, final photo inspection
• Mill certificates (EN 10204 3.1) for raw material traceability
• Salt spray test reports (ASTM B117) for corrosion resistance verification
• Pre-shipment photo report — every panel photographed against your approved sample
• ISO 9001 certified facility

Request our full quality manual with your inquiry.

Every order ships with mill test certificates, salt spray reports for PVD finishes, dimensional inspection reports, and packing photos.

Yes — we strongly recommend a physical sample to verify material, perforation, and surface finish before production.

Samples use the exact same material, CNC perforation process, and surface treatment as full production. Digital renders cannot replicate real metal texture, edge burr control, or coating thickness.

Sample includes:

• Real sheet (aluminum or stainless steel options)
• Specified perforation pattern
• Specified surface finish (powder / anodized / PVD)
• Edge treatment and mounting holes (if required)

Process & policy:

• 3–7 working days from spec confirmation to sample
• Sample size typically 300×300mm or 500×500mm
• Sample fee 80–250 USD/pc (complexity dependent)
• Fully credited against production PO for orders ≥50m²

A physical sample is the most reliable decision tool for architects and designers. Contact us to arrange yours.

Yes. We strongly recommend sample confirmation before mass production. We can provide physical samples or finish/color swatches so you and your client can verify thickness, surface quality, PVD tone, and texture. Typical sample preparation time is 7-12 days.

With correct material and finish selection, perforated metal panels deliver 15–30 years of outdoor service with no visible rust or fading.

Durability varies significantly by climate. 316 stainless steel and premium coatings are essential for coastal and high-corrosion environments.

PVD vs Powder Coat vs Anodized:

• PVD (Physical Vapor Deposition) — Most wear-resistant, 25+ years weathering, virtually no fading
• Powder coat — Best value, 10–20 years (premium PVDF up to 20 years)
• Anodized (aluminum only) — Hard oxide layer, 20+ years no fade but limited color range

304 vs 316 SS at perforated edges:

• 304 — Prone to "tea staining" (edge pitting) in coastal salt; requires periodic maintenance
• 316 — Contains 2–3% molybdenum, 3–5× better pitting resistance; perforated edges show virtually no rust risk for long-term exposure

Common misconception: "All stainless steel is rust-proof" — material grade must match the environment. Share your site climate data and we recommend the optimal solution with a 10–20 year warranty.

Indoor and outdoor screens can look similar in renders, but the specification should change for exposure, fixing, and long-term maintenance. Interior screens usually focus on finish quality, sightlines, and integration with ceilings or millwork. Exterior screens also need weather, wind, drainage, and corrosion control.

Outdoor screens also need local wind condition, substrate, and fixing points reviewed before fabrication. This is especially important for terraces, pool zones, and landscape boundaries.

Include climate, site photos, and mounting surface details when asking for an outdoor stainless screen quote.

PVD finish is a thin metal coating bonded to stainless steel in a vacuum process, used when the project needs color with a metallic surface rather than paint coverage. It is common for champagne, bronze, black titanium, rose gold, and gunmetal stainless screens.

1. Choose the base texture - hairline, brushed, mirror, bead-blasted, or etched texture changes the final reflection.
2. Choose the color family - champagne and bronze feel warmer; black titanium and gunmetal feel quieter and more architectural.
3. Match the environment - exterior or humid projects should pair the finish with the correct stainless grade and cleaning plan.

PVD is well suited to hotel lobbies, restaurant screens, feature walls, and glass-hybrid dividers because it gives color while preserving the stainless substrate. High-touch public areas should use samples to check fingerprint visibility, reflection, and cleaning tolerance under the actual lighting.

Request finish swatches before final approval. The same PVD color can read very differently under warm hotel lighting, daylight, and wall-wash fixtures.

For high-touch zones, we recommend hairline finishes (naturally better fingerprint resistance) or optional PVD anti-fingerprint coating (AFP). Daily cleaning is simple: use a soft damp cloth. For tougher stains, use a mild cleaner and avoid abrasive pads or scouring products.

No. PVD (Physical Vapor Deposition) is not standard paint; it forms a bonded coating layer on the metal surface. In normal interior use, PVD finishes can last more than 15 years without fading or peeling.

Maintenance depends on the grade, finish, and environment, but most stainless screens need simple routine cleaning rather than heavy upkeep. The goal is to remove dust, fingerprints, salt residue, and site contamination before they sit on the surface for long periods.

• Interior screens - wipe with a soft cloth and pH-neutral cleaner; follow the grain direction on brushed finishes.
• Exterior screens - rinse and clean more often in coastal, poolside, or dusty environments.
• PVD finishes - use non-abrasive cloths and mild cleaners to protect the colored surface.
• Hardware checks - review exposed fasteners, base plates, and drainage areas during scheduled facility maintenance.

Avoid abrasive pads and chloride-heavy cleaners, especially on colored or brushed finishes. For exterior 316 stainless screens, regular freshwater rinsing can help preserve appearance near salt air.

Ask for a maintenance note matched to the selected grade and finish before shipment, so the handover package is ready for the owner or facility team.
